7mm Scale Brecon & Merthyr Railway '1' Class locomotive

Shop/7mm Scale Locomotive Kits

£350.00

New product

Please choose a Fowler or Stephenson build

Please choose

Preorder

Please choose

Out of stock, available for pre-order

Product Details

Model Kit Description

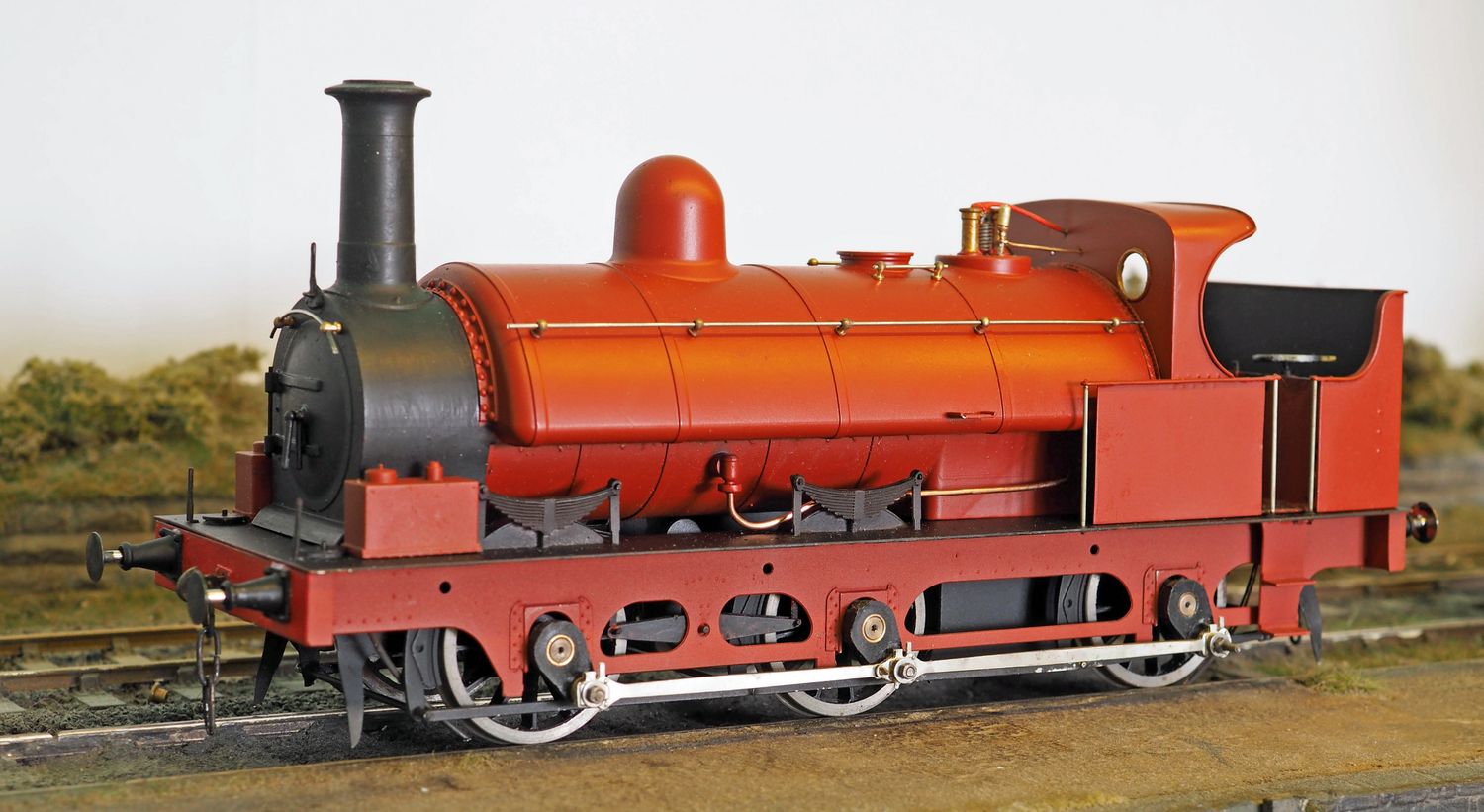

The kit will build a 7mm to the foot scale model of Brecon & Merthyr Railway “1” Class Locomotive

You can select options from either Stepehnson or Fowler builders.

Note this kit is packed to order so please allow 28 days for delivery. A 25% deposit is required with balance payable when ready to ship.

The kit contains:

Etched Nickel Silver frets for body and underframe

One-piece 3D printed Saddle tank/smokebox including chimney, dome and safety valve

3D Printed buffers sprung with steel heads

Requires Slaters 7849O/C 4'1 1/2" 12 Spoke (MR Well Tank)& motor/gearbox

Prototype History

Number Built	12
Date Built	1884-1886
Builders	R. Stephenson & John Fowler
Cylinders	17” x 24" ⁽¹⁾
Wheelbase	7' 3" +8" 5”
Wheel Diameter	4' 2"
Weight	45 tons
Tank Capacity	900 galls
Bolier Pressure	140 p.s.i. ⁽²⁾

The following table summarises the history of these engines.

No.	Date	Built	Builder	Vacuum Fitted⁽¹⁾	Re-boilered	Ross Pop fitted⁽²⁾	Shed⁽³⁾	GWR No.	Date Withdrawn
1	Aug	1885	Fowler	No	1917	Yes	Brecon	2177	Jan	1928
2	Aug	1885	Fowler	No	1904	Yes	Brecon	2178	Dec	1925
3	Jan	1886	Fowler	No	1911	No	Brecon	2179	Oct	1926
4	Jan	1886	Fowler	Yes	1909	Yes	Bassaleg	2180	Oct	1926
5	Mar	1884	Stephenson	Yes	1903	Yes	Bassaleg	2181	July	1927
6	Feb	1884	Stephenson	Yes	1909	Yes	Brecon	2182	Dec	1927
7	Feb	1884	Stephenson	No	1909	No	Brecon	2183	Feb	1932
8	Mar	1884	Stephenson	No	N/A	No	Brecon	2184	July	1933
13	Jan	1886	Fowler	No	1905	No	Talyllyn	2185	July	1923
14	Jan	1886	Fowler	Yes	1905	No	Bassaleg	2186	Dec	1934⁽⁴⁾
15	Apr	1884	Stephenson	Yes	1906	No	Bassaleg	2187	Nov	1923
16	Apr	1884	Stephenson	Yes	1906⁽⁵⁾	No	Bassaleg	2188	March	1928

Notes:

1. Locomotives with vacuum brakes as at December 1920.

2. Locomotives which had their Ramsbottom safety valves replaced by Ross Pops by 1916.

3. Locations of engines as at Sept. 1922.

4. Sold in June 1936 to R. Frazer and Sons. It was resold in July of the same year to the Hazelrigg and Burradon Coal Co. in Newcastle. It was scrapped in 1944.

5. Also reported as 1896 and 1917.
